Description
| Model: | EL-391118 |

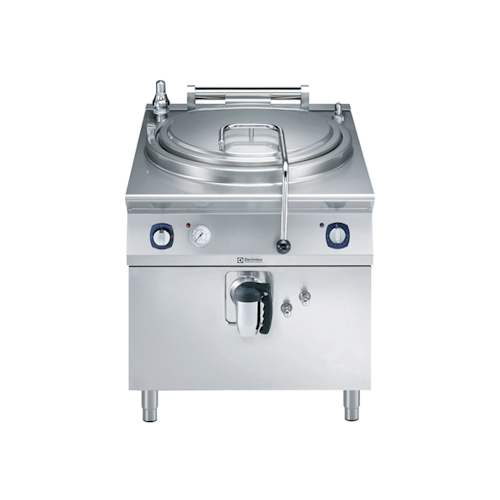

| Type: | Modular Cooking Range Line 900XP Electric Cylindrical Boiling Pan 100lt |
| Power: | 380-400 V/3N ph/50/60 Hz Total Watts: 21.5 kW |
| Pan useful capacity: | 98L |
| Work temperature; | 110 °C |

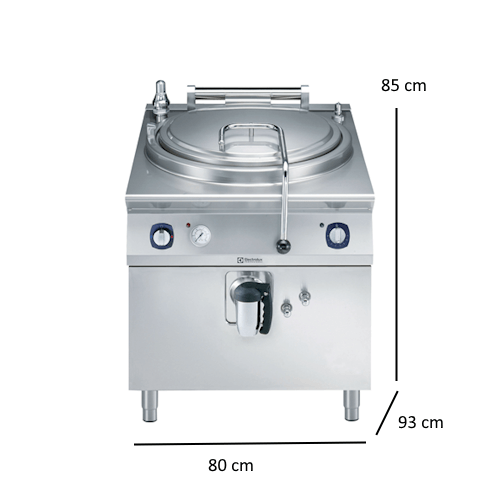

| Size: | 80 x 93 x 85 cm |
| Packing size: | 87x 111 x 122 cm |
| Weight: | 135 Kg |
| Warranty: | 365 days |
| Delivery: | 45-60 Days
|
Main Features
- Minimum load for correct funtioning is 20 liters.
- Round kettle is suitable to cook, sauté or poach all kinds of produce.
- Produce is uniformly heated in the base and side walls of the kettle by an indirect heating system that uses integrally generated saturated steam at a temperature of 110° C in the jacket.
- Incoloy armoured elements with safety thermostat positioned in the jacket cavity base.
- External valve allows to manually evacuate excess air accumulated in the jacket during heating phase.
- Appliance is IPX5 water resistance certified.
- Manometer allows to correctly control the functioning of the pan.
- Energy regulation through a control knob.
- Safety thermostat protects against low water level.
- Safety valve avoids overpressure of the steam in the jacket.
- No overshooting of cooking temperatures, fast reaction.
- Large capacity food tap enables safe and effortless discharging of contents.
- Ergonomic: the depth of the vessel facilitates stirring the food, also the most delicate food.
- Discharge tube and tap are very easy to clean from outside.
- Solenoid valve to refill with hot and cold water.
- Smooth large surfaces, easy access for cleaning.
- The special design of the control knob system guarantees against water infiltration.
Construction
- Usable capacity of the well 85 liters.
- Pressed cooking vessel and double jacket in 316 AISI Stainless steel.
- All exterior panels in Stainless Steel with Scotch Brite finishing.
- Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps
